Understanding Lift Axles in Semi-Trailer Trucks: Benefits, Regulations, and Usage
Posted by: Duaparts on
Heavy-duty trucks must comply with strict weight-distribution laws to operate legally and efficiently. One of the most effective solutions is the lift axle—an auxiliary axle that can be raised or lowered depending on the load. Lift axles are common in North America and Europe and are widely used in heavy transport, logging, and construction.
What Is a Lift Axle?

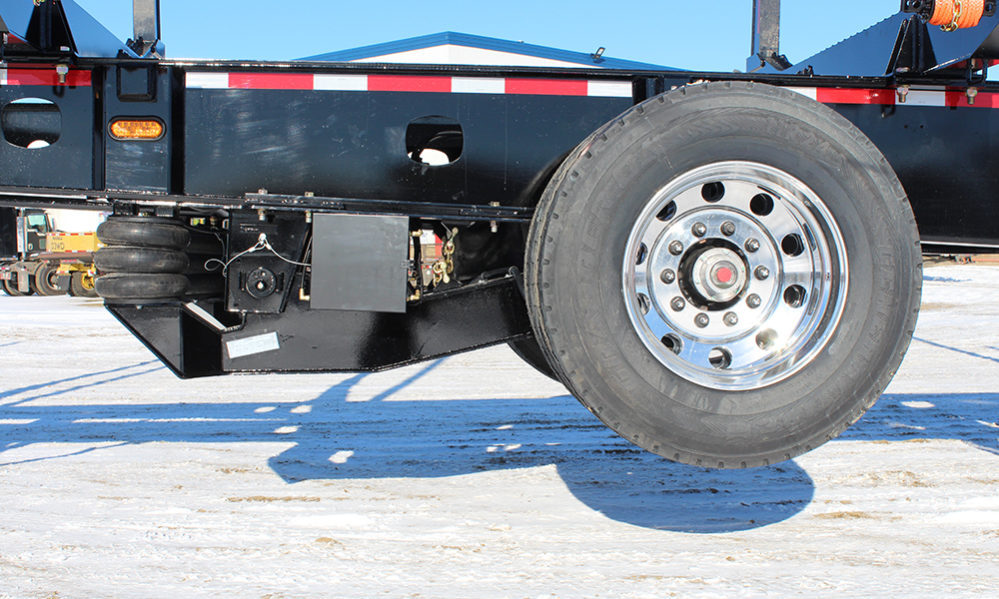

A lift axle (sometimes called a “tag axle” or “pusher axle,” depending on placement) is an additional axle mounted on trucks or trailers that can be hydraulically or pneumatically engaged when the vehicle is heavily loaded and raised when not needed.
Types of Lift Axles
- Pusher axle — Located ahead of the drive axle to balance front-to-rear loads.
- Tag axle — Located behind the drive axle; common on dump trucks and coaches.
- Steerable lift axle — Adds steering to reduce tire scrub and improve turning radius (popular in Europe).
Technical Specifications
| Parameter | Typical Range / Detail | Notes |
|---|---|---|
| Load rating | 9,000–25,000 lb (4,082–11,340 kg) | Match to axle group and frame rating. |
| Suspension | Air (most common), spring | Air systems integrate with load-sensing controls. |
| Activation | Cab switch; automatic load-sensing | Auto-deploy when gross weight exceeds threshold. |
| Tire configuration | Single or dual | Dual preferred for heavy construction/highway. |
| Steer capability | Fixed or steerable | Steerable reduces turning radius by ~10–15%. |
| Controls & plumbing | Air valves, solenoids, height-control valves | Regular inspection prevents leaks/faults. |
Integration tip: Interlock raise/lower logic with vehicle speed to prevent damage during service and ensure safe operation.
Benefits of Lift Axles
1) Weight Distribution & Compliance
Why it matters: Trucks must comply with axle-weight laws (e.g., the U.S. Federal Bridge Formula). Exceeding per-axle limits leads to fines, delays, and possible impoundment.
How lift axles help: Lowering an extra axle spreads gross weight across more wheels and axle groups, reducing per-axle loading.
- U.S. example (dump truck): A typical tri-axle dump might legally haul ~18–19 tons without a lift axle. Adding a pusher lift axle often raises legal payload to ~21–22 tons (≈ +4,000–4,500 lb), depending on state rules.
- Canada: Ontario and other provinces require automatic controls for certain construction trucks; a 7-axle combination can legally carry up to ~57,500 kg (126,800 lb), far more than a U.S. 5-axle 80,000-lb limit.
- Europe: Lift axles help multi-axle trailers stay under common EU per-axle limits (often 10–12 tonnes per axle) when fully loaded.
2) Fuel Efficiency
Why it matters: Fuel is a top operating cost. A Class 8 long-haul truck often drives ~100,000–120,000 miles/year and burns 20,000+ gallons of diesel.
How lift axles help: Raising the axle when lightly loaded reduces rolling resistance (fewer tires on the road) and drag, improving mpg.
- Long-haul fleet result: Proper use of lift axles commonly yields ~3–5% fuel savings on highway duty cycles.
- Dollar impact: At $4.00/gal, 3–5% savings can mean roughly $2,500–$3,000 saved per truck, per year (usage-dependent).
- EU example: A logistics operator reported ~1,200 L diesel saved annually per truck with steerable lift axles (route and load dependent).
3) Tire & Brake Life
Why it matters: Premium commercial tires often cost $400–$600 each, and brake components wear faster under heavy load and urban stop-and-go.
How lift axles help: When raised, those tires and brakes aren’t in contact/use, eliminating wear. When lowered, weight is shared across more axles, reducing overload on drives.
- Tire life: Correct lift-axle use commonly extends overall tire life by ~20–30%.
- Fleet impact: A 20-truck fleet can avoid replacement of hundreds of tires annually over time, depending on routes/duty cycles.
- Brakes: Lift-axle brakes engage only when deployed, lengthening service intervals and lowering maintenance cost.
4) Maneuverability
Why it matters: Urban streets, tight docks, and job sites demand sharper turning with less tire scrub (sideways dragging) that chews tread and damages pavement.
How lift axles help: Raising the axle effectively shortens the wheelbase for tighter turns; steerable lift axles further cut scrub and improve tracking.
- City/construction example: A concrete mixer with a steerable pusher lift axle reduced minimum turning radius by ~12%, improving site access and reducing curb strikes.
- European trailers: Rear steerable lift axles auto-align in turns, lowering inner-tire scrub and extending tread life on multi-drop urban routes.
Quick Reference
| Benefit | Technical Detail | Real-World Example |
|---|---|---|
| Weight Distribution | Spreads load across more axles to meet bridge/axle formulas | U.S. tri-axle dump: ~+4,000–4,500 lb legal payload with pusher (state-dependent) |
| Fuel Efficiency | Raised axle lowers rolling resistance and drag | ~3–5% fuel savings; ≈ $2.5k–$3k per truck/year at $4/gal |
| Tire & Brake Life | Eliminates wear when raised; reduces overload when lowered | ~20–30% longer tire life; fewer brake service cycles |
| Maneuverability | Shorter effective wheelbase; steerable reduces scrub | Concrete mixer: ~12% tighter turn radius; less curb/tire damage |
Regional Regulations for Lift Axles
| Region | Key Regulations | Additional Details / Examples |
|---|---|---|
| United States | Governed by the Federal Bridge Formula (23 CFR 658.17). Legal gross weight for 5-axle tractor-trailer is 80,000 lb. |
|
| Canada | Provinces such as Ontario and British Columbia require lift axles on many dump trucks, mixers, and heavy haulers. |
|
| Europe | EU limits maximum axle loads to 10–12 tonnes per axle (varies by country). |
|
| Australia | Road trains and multi-trailer combinations often use multiple lift axles to spread loads. |
|
Real-World Examples
- Dump trucks — A tri-axle dump with a pusher can legally carry up to ~22 tons of aggregate, versus 18–19 tons without.
- Logging — Canadian logging trucks use multiple lift axles to distribute heavy timber loads within per-axle limits.
- Long-haul freight — European semi-trailers with a steerable lift axle can save up to ~1,200 liters of fuel per truck annually (duty-cycle dependent).
Challenges & Considerations
- Cost — Typical system cost is $7,000–$12,000 depending on configuration.
- Maintenance — Inspect hydraulic/pneumatic lines, air bags, valves, and height-control components regularly.
- Driver training — Misuse (e.g., lifting when loaded) can cause violations or uneven wear.
